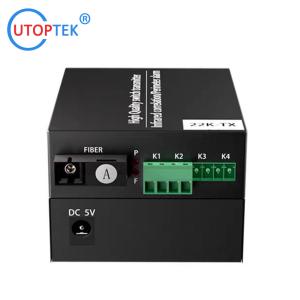

1-16CH Dry Contact Closure optical Converter Multiplexer

(FC/SC/ST Connector optional )

1. Overview

The 1~16Channels series optical transceiver is designed for anti-theft alarm, PLC control, dry point trigger, button switch start / stop control. it has 1-way, 2-way, 4-way, 8-way, 16 way contact closure unidirectional /bidirectional and other specifications to meet different user application places. The limit transmission distance of the cable can be extended from 100m to 100km. it not only extend the transmission distance, but also has strong anti-interference, low power consumption, high stability, and built-in lightning protection components. lt has many advantages such as good data confidentiality, stable work and easy maintenance, which effectively avoids the threat of lightning strikes, surges and electro magnetic interference to communication equipment under bad environment.

2. Features:

• 1-16CH switching interface, 1 port SC/FC/ST fiber port optional;
• Multi scene application: smoking / infrared / alarm /switching on or off control;
• The optical link and the electrical link have complete connection / activity status indicators;
• The fiber interface supports three transmission modes: single-mode single fiber, single-mode dual fiber and multi-mode dual fiber;
• Easy to use, plug and play, without any settings;
• Double hole heat dissipation design, low power consumption, can ensure long-term stable work.

3. Application

• Urban Intelligent Transportation Monitoring System (ITS)
• Highway monitoring/communication system
• Electric/Hydraulic Safety Monitoring System
• Large scale factory and mining enterprise security monitoring system
• Remote multimedia teaching/campus monitoring
• Long distance broadcasting transmission system
• Building control system
• Military communication

4. Technical sheet

• Order Information

(Remark: ST/SC/FC Fiber connector Optional; optical distance:20/40/60/80km optional)

Connection Topology:
