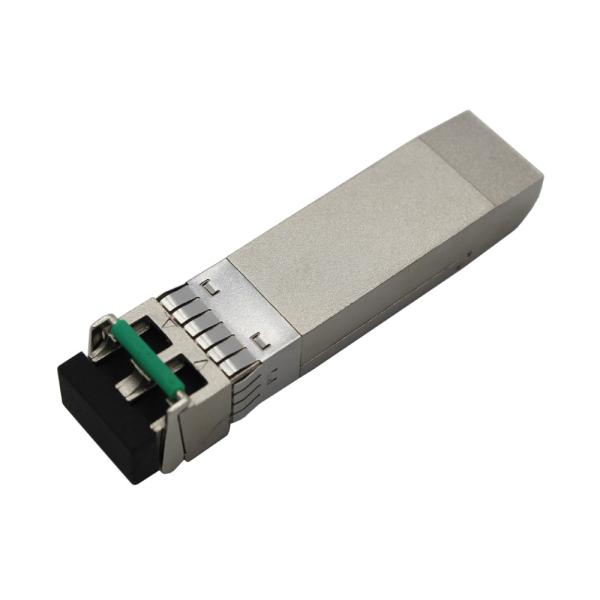

10Gb/s 40km DWDM SFP+ Transceiver

Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM EML, Single mode

Description

This DWDM-SFP-10G-CXX is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The DWDM-SFP-10G-CXX converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance DWDM EML transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 40km links. The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ER. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features:

• Supports 9.95 to 11.3Gb/s bit rates
• Hot-Pluggable
• Duplex LC connector
• 100GHz ITU Grid, C Band
• DWDM EML transmitter, PIN photo-detector
• SMF links up to 40km
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
• Power Supply :+3.3V
• Power consumption<1.8W
• Temperature Range: 0~ 70°C
• RoHS compliant

Factory Show:

Ordering Information:
